Ultra High Efficiency

For over 20 years, IPF has manufactured PVC/FRP centrifugal fans in a wide range of sizes from 200 cfm to 70,000 cfm designed for corrosive fume applications.

Standard construction includes FRP impellers with PVC/FRP housings. Our fan design provides the highest aerodynamic efficiency compatible with specific system requirements and is often the best corrosion-resistant alternative and the most economical on a life cycle cost basis.

We provide a large range of centrifugal exhaust fans specially designed to handle acids, inorganic and organic corrosive fumes in industrial and chemical plants.

Design Features
  • Ultra high efficiency
  • Smallest to very high range of air volume and pressure capacity
  • Unique inlet cones with airflow diverters improve fan efficiency
  • Lowest sound level
  • Clockwise/counterclockwise rotations in any of 10 standard discharge positions
Construction Features

Fan Casings – Standard construction is rigid PVC inside liner for maximum corrosion protection with exterior FRP reinforcing. If requested, casings can be fabricated using only FRP using fire retardant resins.

Impellers – Constructed out of solid FRP. All impeller surfaces are finished with a resin-rich surface veil for superior corrosion resistance.

Applications
  • Industrial Ventilation

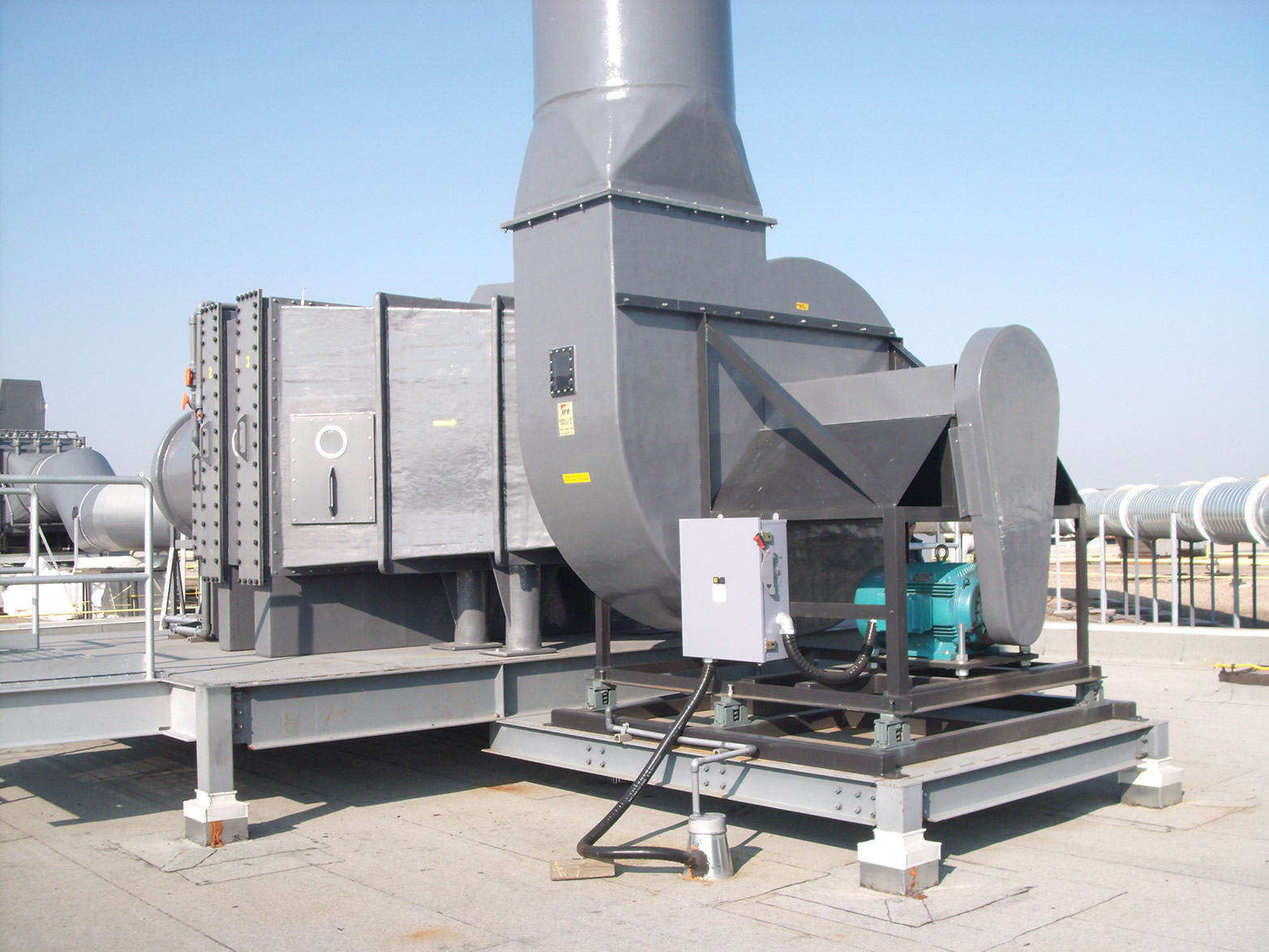

  • Scrubber Exhaust
  • Pulp & Paper
  • Mining
  • Pollution Controls
  • Plating Exhaust
  • Pharmaceutical
  • Solvent Recovery
  • Chemical Processing
  • Wastewater Treatment





























1
1

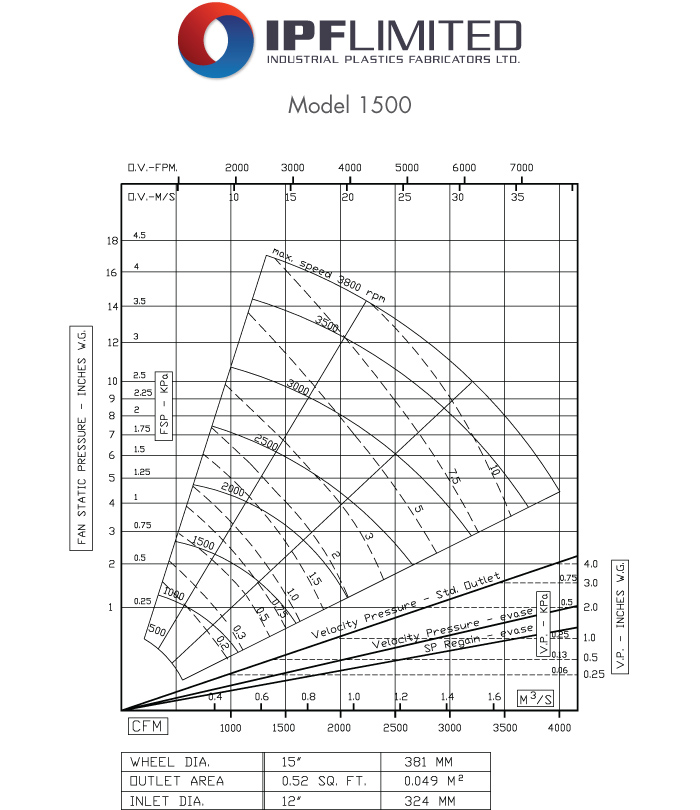

Fan Curves & Drawings
ModelFan CurveFan Drawing
F-700View    |    DownloadDownload
F-1000View    |    DownloadDownload
F-1500View    |    DownloadDownload
F-1900View    |    DownloadDownload
F-2200View    |    DownloadDownload
F-2600View    |    DownloadDownload
F-2900View    |    DownloadDownload
F-3300View    |    DownloadDownload
F-3600View    |    DownloadDownload
F-4000View    |    DownloadDownload
F-4200View    |    DownloadDownload
F-4500View    |    DownloadDownload
F-5000View    |    DownloadDownload
F-5800View    |    DownloadDownload
F-6400View    |    DownloadDownload
F-7200View    |    Download
